Insignia Signature Commercial Steam Generator (7.5 to 18kW)

Relax, Rejuvenate, Renew With Every Steam Session

✔️FREE UK Delivery
✔️12-Month Warranty
✔️Ideal For Home & Commercial Use
✔️Professional Grade System
✔️Intelligent Fast Start Steam
✔️Sectional Heating Technology
✔️Overheat Protection Technology
✔️Low Water Level Protection
✔️Stainless Steel Components
✔️Touch Screen Control Panel
✔️Highly Efficient
✔️Energy-Saving
✔️Low Maintenance Design
✔️With Customisable Features
✔️Available In Different Sizes
✔️Ready For Immediate Delivery
✔️Top-Notch Customer Service

Welcome to the most luxurious and exclusive spa experience available for your home or business. Insignia’s Signature Steam Generators are of superior quality, far exceeding that of previous models—crafted and created to provide you with the very best home spa available. The highest available specifications with stainless steel components and construction ensure a prolonged lifespan and provide years of soft steam clouds and intensive heat to soothe away the stress and negativity of the day.

Key Features

Escape the Day, Find Your Calm – Wellness Starts Here

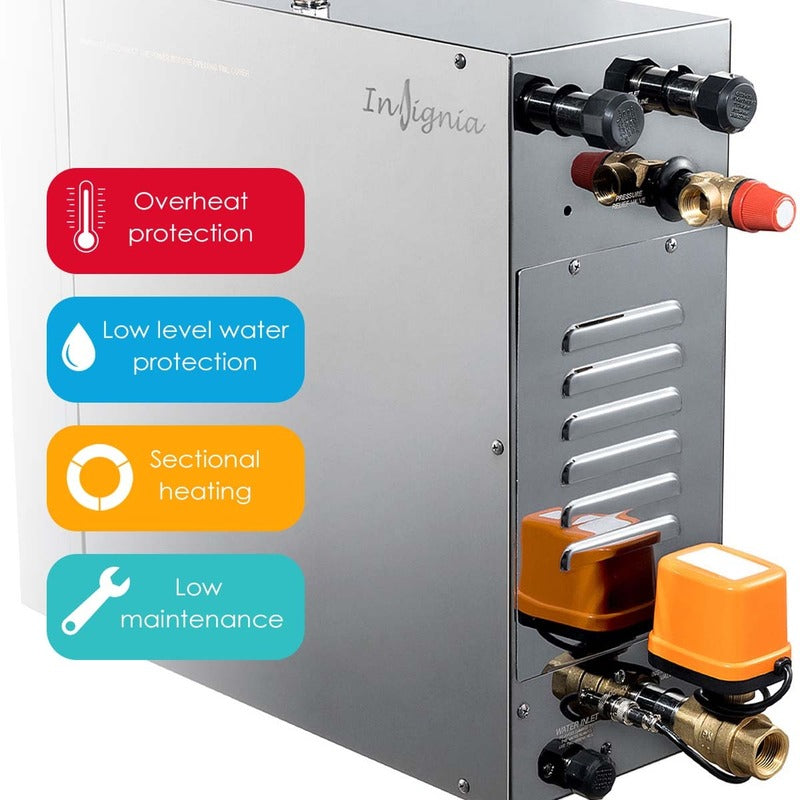

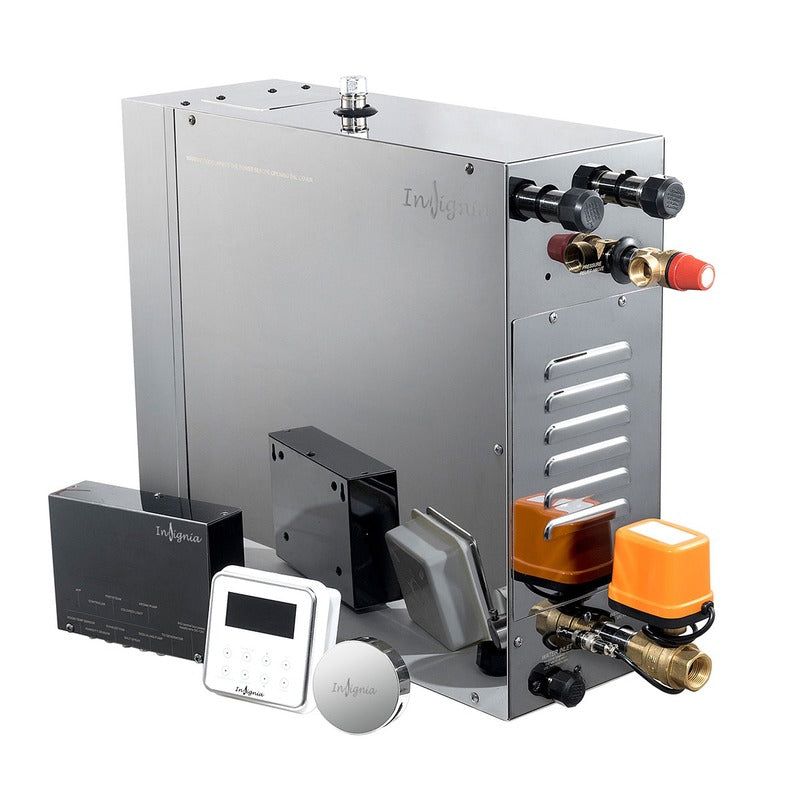

Superior Quality Steam Generator

With stainless steel construction both inside and out, Signature Steam Generators are not only built to last but also stylishly good-looking. They have been specially designed and developed to provide a high-quality, robust, intelligent system.

You can rest assured that whether for heavy-duty domestic or commercial use, the Signature Steam Generator is built to an exceptionally high standard and will deliver day after day. With many exciting add-ons, the Signature Steam Generator allows for many customisable features allowing you to create the perfect steam room for your business.

Fast Start Steam

The Insignia Signature Steam Generator also comes with intelligent fast-start steam. After the user activates the steam button, the steam will begin at 30 seconds, the water will be kept at 80°C and a 30-minute steam cycle will then run and switch off until it is re-activated by the user. This function is highly efficient and energy-saving, especially for commercial use.

Sectional Heating Technology

The steam generator incorporates 3 groups of heating elements that provide sectional heating technology™. It works by first powering all 3 groups which operate at maximum power to effect rapid heating. When the room temperature is almost reached, group 1 stops, when the required temperature is achieved, then group 2 stops. Group 3 alternates on and off to effectively maintain the room temperature.

Overheating Protection Technology

Built-in safety ensures that should the temperature go over your desired setting or the water temperature exceeds safety levels, the Signature Steam Generator will stop heating and go into protection mode. Only when the temperature levels return will the Signature Steam Generator continue operation.

If the room temperature reaches 2°C higher than the programmed setting, then all the heating elements stop working and go into a preservation state until the temperature drops. Additionally, should the water tank temperature reach over 115 °C the steam generator will stop further heating until it drops to a safe temperature, ensuring the safety of the user and longevity of the generator.

Low Maintenance Design

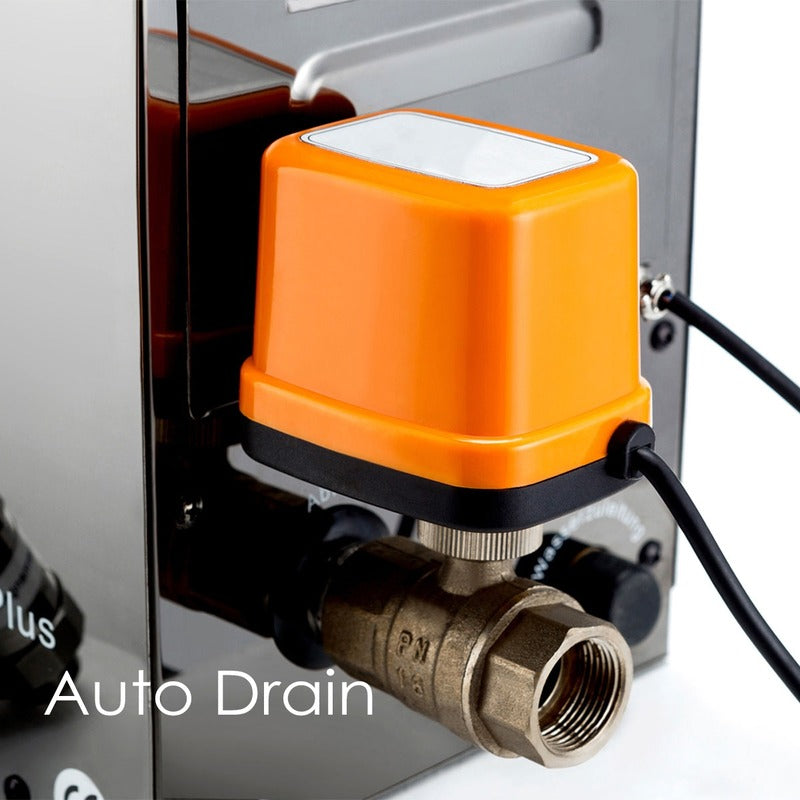

The top loading descaling port allows for easy access and quick descaling while the generator unit can be completely emptied via the drain valve and then rinsed through with fresh water when required. Low-level water protection will automatically place the Signature Steam Generator in Sleep Mode until correct water levels are achieved, ensuring essential components are protected.

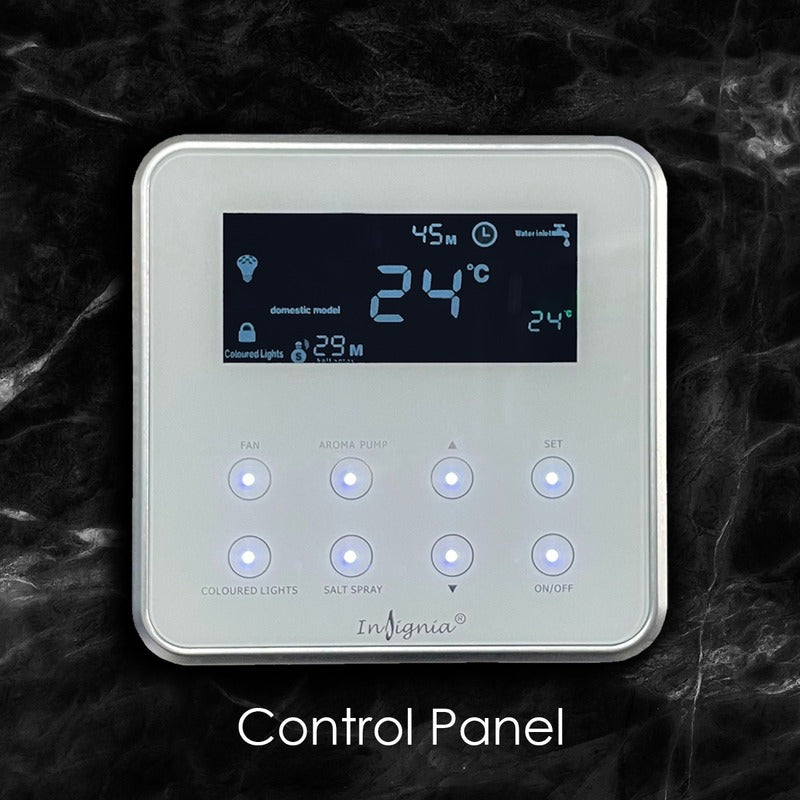

Touch Screen Control Panel

The waterproof digital control panel is your single control point for all the Signature Steam Generator functions. Remotely fit the panel for easy access either inside or outside your steam room. Control your temperature and timer to create your spa experience your way.

Order Now

Transform your wellness routine with the Insignia Commercial Steam Generator. Order now to experience its luxury, technology, and holistic health benefits in your sanctuary.

Specifications

• Superior Quality Steam Generator
• Fast Start Steam
• Overheat Protection Technology
• Sectional Heating Technology
• Low Water Level Protection
• Low Maintenance

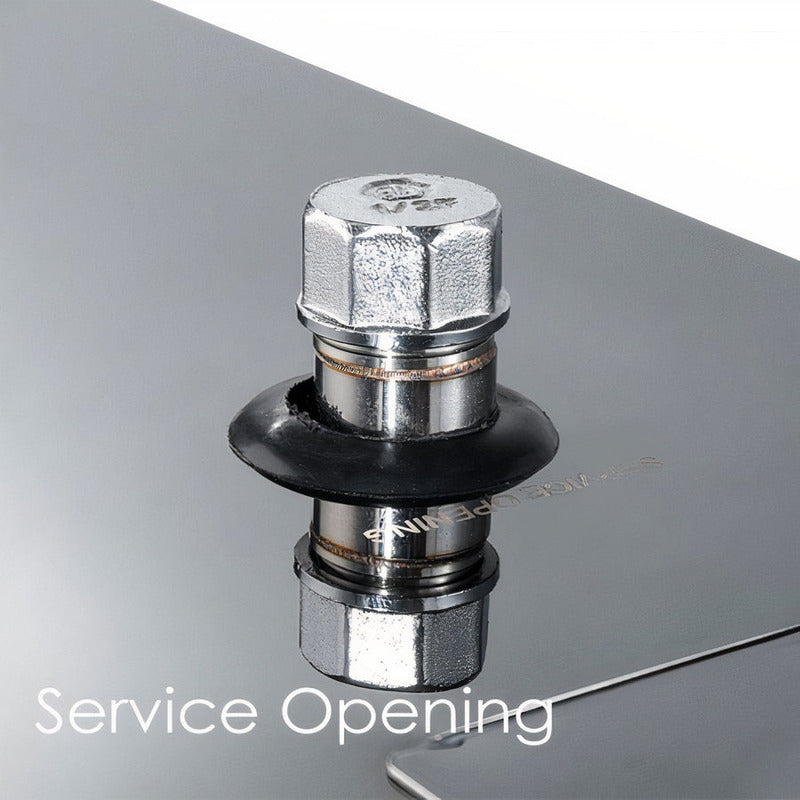

• Easily Accessible Service Hole
• Waterproof Touch Screen Control Panel
• Available in 7.5kW, 10.5kW, 12kW, 15kW and 18kW

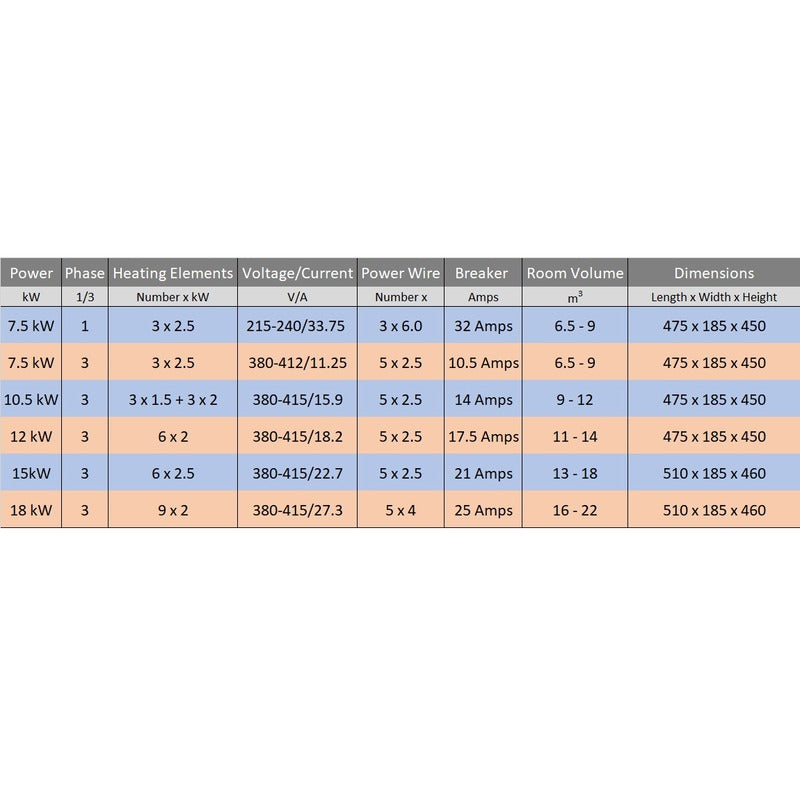

Electrical Specification

1. The rated power is measured under a single phase of 230V, therefore the actual operating power under single phase 215-240V, 50/60Hz, or three phases 380-415V, 50/60Hz may be different from the rated value.


2. The 7.5kW generator can be made as 215-240V single phase or 380-415V three phases. Please note the earth wire should not be less than 1.5mm², and the live wire and null wire should not be less than 2.5mm².


3. The 10.5kW, 12kW, 15kW, and 18kW generators, can only be installed by 380-415V in three phases. Please note the earth wire should not be less than 2.5mm², and the live wire and null wire should not be less than 4.0mm².

Safety Warning

• Never allow children to use the steam function. This function is for ADULTS ONLY.

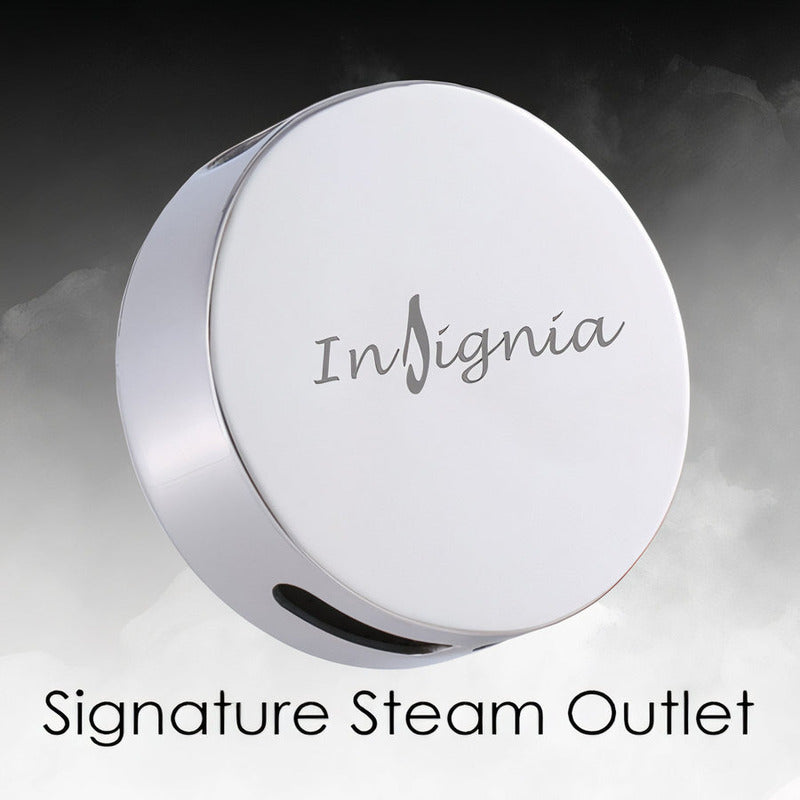

• Always be aware of the steam outlet position. Never use it close to the person using it.
• Exit the steam room immediately if feeling dizzy, faint, or short of breath.
• Do NOT use the steam room if you’re pregnant, have a heart condition, or have low or high blood pressure. If you’re unsure consult your GP before use.
• If you have any underlying health conditions that you feel could be aggravated by using a steam room, consult your GP before use.
• If you begin to have any issues with your health after using a steam room, stop immediately and consult your GP regarding your symptoms before continuing to use.
• Consult your GP before using the steam room if you’re on medication at all, especially with drowsy side effects.
• Never use this steam room if you have been drinking alcohol or under the influence of other substances.
• Always turn the power supply off after use.
• Proper ventilation is recommended for the steam room.

Delivery, Installation & Returns

Delivery
All Steam Generators are free delivery in the UK.

Installation
Check the manual detailing the installation process below:

7.5kW Steam Generator Installation Manual
10.5kW Steam Generator Installation Manual
12kW Steam Generator Installation Manual
15kW Steam Generator Installation Manual
18kW Steam Generator Installation Manual

Returns
If the product is different from your liking, or if you want to return the product, this is often possible. To return the product, it must be in the original packaging and the product must be undamaged.

Contact us to report your return. We require the order number, shipping details, description of the problem, and photos. This will help us to serve you as soon as possible.

Warranty

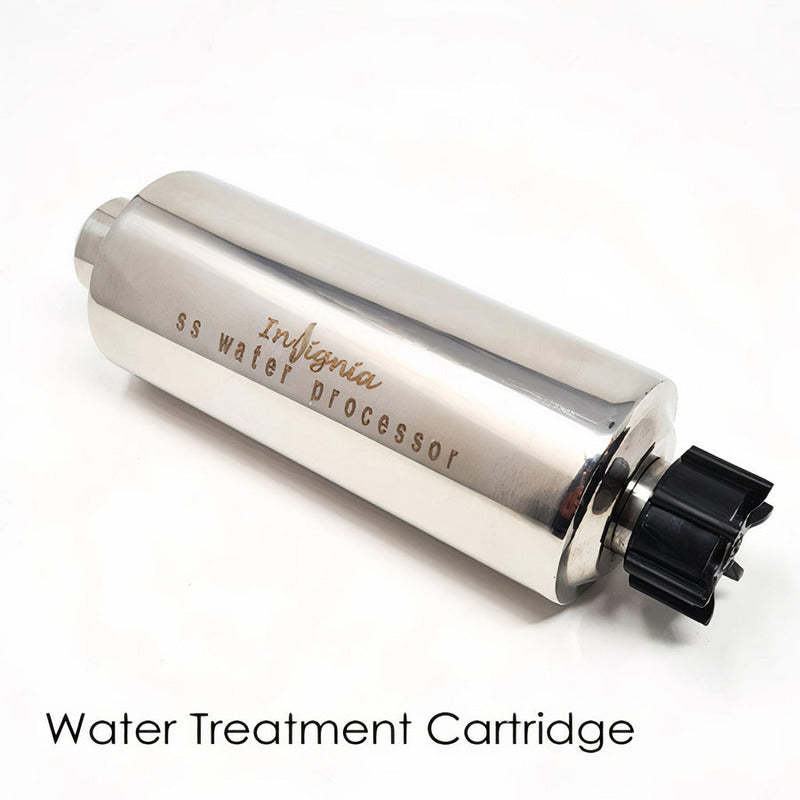

12-month warranty as standard. Upgrade the warranty to two years with the additional purchase and installation of an approved water processor/filter.
